FT86MS Turbo Kit - Various Options - FRS/BRZ/86

FT86MS is finally launching for production the FT86MS Turbo Kits! It is hands down the most affordable, fully customizable, highest quality, best thought out kit on the market! Every aspect about this kit was designed for ease of install, ease of customizability(Yes you can update to a bigger turbo down the road without needing to buy a new kit). Below we will list the features, and the advantages versus other popular kits on the market.

At the time of creating this listing, we have three kits on the market for over a year, with zero failures. Some have oil drain issues, some have turbo quality issues, some have cracking of flex pipes.

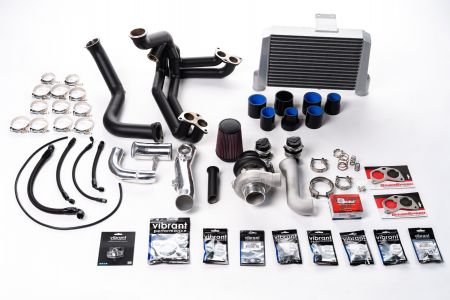

Features/Design Advantages:

-GT2860RS Base Turbo, capable of 400whp, for any turbo options not in option menu, contact us.
-SCH10 Stainless Steel 304 Back Purged Professionaly Tig Welded Turbo Manifold(UEL or EL), with FT86MS Cast Collector for optimal quality and flow(Cerakote Options)
-16GA(0.065") Stainless Steel 304 Back Purged Professionaly Tig Welded 2.5" or 3" Downpipe(Cerakote and Size Options)
-Vband Turbine Housing with both the inlet and outlet of the turbine housing, no annoying 4 bolt inlet and 5 bolt outlet that you can't reach most of those bolts without taking 1 hour for those 9 bolts alone, two Vbands with a two easy to reach bolt that needs to be tighten, install and removal is a lot faster.
-Turbosmart External Wastegate Available, with both Open Dump or Recirculated back into the downpipe, which is installed via Vband.
-Turbosmart Manual Boost Controller included, so you can fine tune between spring pressure of 7psi to you're exact target boost between 7psi and 12.5psi(we do not recommend higher then this with stock block)
-Grimmspeed Manifold to Head Gaskets included.
-TurboSmart 50mm RacePort Blow Off Valve
-For ease of install, Vibrant AN6 Banjo Fitting for Water Cooling of turbo.
-Vibrant 5/16" Barb to AN6 fittings to go from water line at throttle body to the AN6 line.
-AN6 Vibrant Black hoses and hose ends for coolant lines to turbo.
-AN4 Vibrant Oil Feed Line with Vibrant Oil Feed Adapter for Ball Bearings and Journal Bearing Turbos(ball required restrictors that is included)
-1/4" NPT Custom T fitting to ease installation of oil feed line in the timing cover.
-AN10 Vibrant Oil Drain Line with included Oil Drain Flange from Turbo.
-AN10 Stainless Steel Bung Welded Oil Pan optional.
-Brass 3/8", 1/4", 3/8" T fitting to connect the vacuum line from brake booster for your Blow Off Valve.
-3 BAR Omni Map Sensor Included
-Front Mount over the radiator tube and fin intercooler.
-Full Aluminum Intercooler Piping(Powder Coat options)
-All clamps are Tbolt Clamps, not Worm Drive Clamps
-3Ply Silicone Couplers in Black

This kit was engineered and thought out for customer or shop installation, power and utmost quality.

The Manifold and Downpipe carry a life time warranty, everything else would be regular manufacturer warranty.


Production and Sourcing Timeline depending on options is anywhere from 1 week to 2 months, please contact us for exact lead time.

Cerakote, Powder Coat add at least 1 week of delay.

Fitment:

2013-2020 Subaru BRZ
2013-2016 Scion FR-S
2017-2020 Toyota 86

Link: Installation Instructions Reduced Size

Link: Installation Instructions
